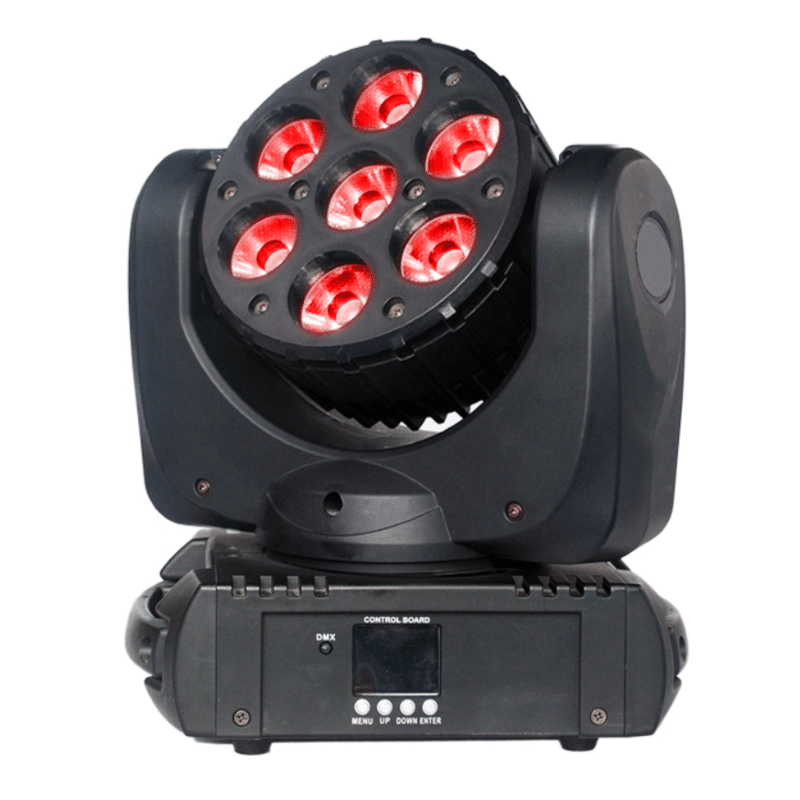

MARS 715
1 / 5

MARS 715

> 7pcs 10w OSRAM Quadcolor LEDs with RGBW colors
> Compact lightweight Narrow beam angle
> 16~55 degree zoom angle
> Positioning within 630° PAN and 200° TILT
> Stepless RGBW color changing
> Different dimmer speeds (step response) adjustable
> Masterdimmer
> 8 internal programs can be called up via Control board
> Color-macro-function for an easy selection of possible color-combinations
> Strobe effect with 1-18 flashes per second
> Random strobe effect
> Exact positioning via 16 bit PAN/TILT movement resolution
> Automatic position correction
> DMX-controlled operation or stand-alone operation with Master/Slave function
> Sound-control via built-in microphone
> Control board with graphic LCD display for adjusting the DMX-starting address, PAN/TILT reverse,
program, reset, operating hours
> Switch-mode power supply
> Automatic power supply adaption between 100 and 240 Volts without power selector
> DMX control via every standard DMX controller

Description

Parameters

※   HOUSING

◈ Environmental-friendly flame-retardant material

※   Electrical Specifications

◈ Power: 270W
◈ Voltage: AC 100-240V, 50/60Hz

※   Light Source

◈  2x 60w white led
◈ 2x 6pcs 10w RGBW 4 in1 led
◈ 2x 24pcs 0.2W 3 in1 RGB led

※  Effects & Functions

◈ Channel Options: 16/26/31/49 CH
◈Rotating Effects
◈Rainbow Effect (speed adjustable)
◈Electronic Dimming
◈Strobe (speed adjustable)
◈Built-in Programs
◈Sound-Activated Mode via built-in mic (sensitivity adjustable)

※   Optical Performance

◈ Beam Angle: 14°
◈ DMX Control
◈ Stand-alone / Master-Slave Mode

Details

Optional accessories

Features

* AC100-240V,50/60Hz
* 2x 60w white led
* 2x 6pcs 10w RGBW 4 in1 led
* 2x 24pcs 0.2W 3 in1 RGB led
* 16/26/31/49 DMX channel in optional
* Effect Rotation
* Rainbow effect with adjustable speed
* Electronic dimmer
* Strobe effect with adjustable speed
* Internal programs
* Sound-control via built-in microphone; sensitivity adjustable
* Exact positioning via 16 bit PAN/TILT movement resolution
* Positioning within 540° PAN and 200° TILT
* DMX-controlled operation or stand-alone operation with Master/Slave function
* Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
* DMX control via every standard DMX controller
* Dimensions:67*39*40cm,N.W.:8.55kg
