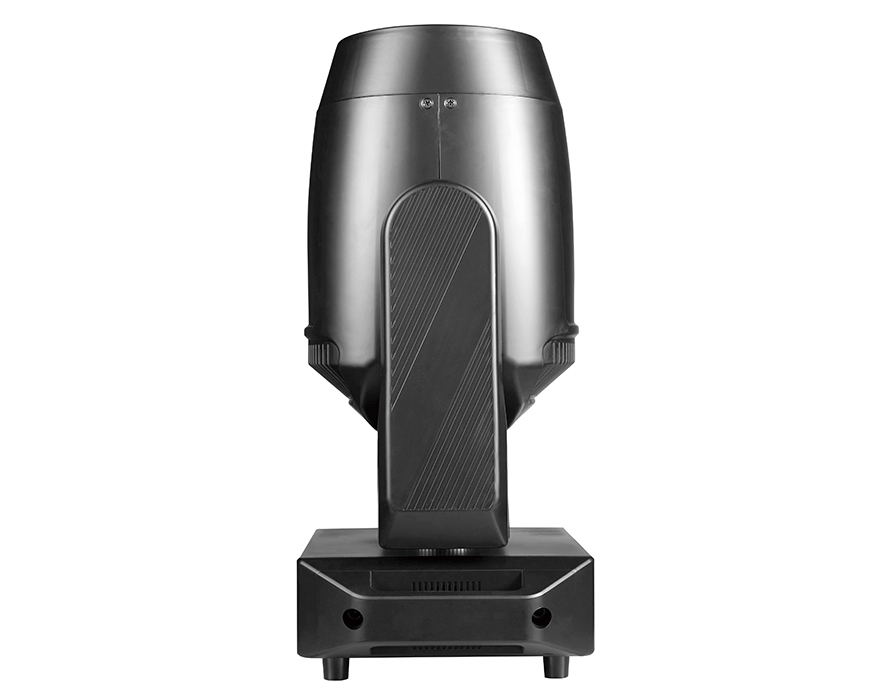

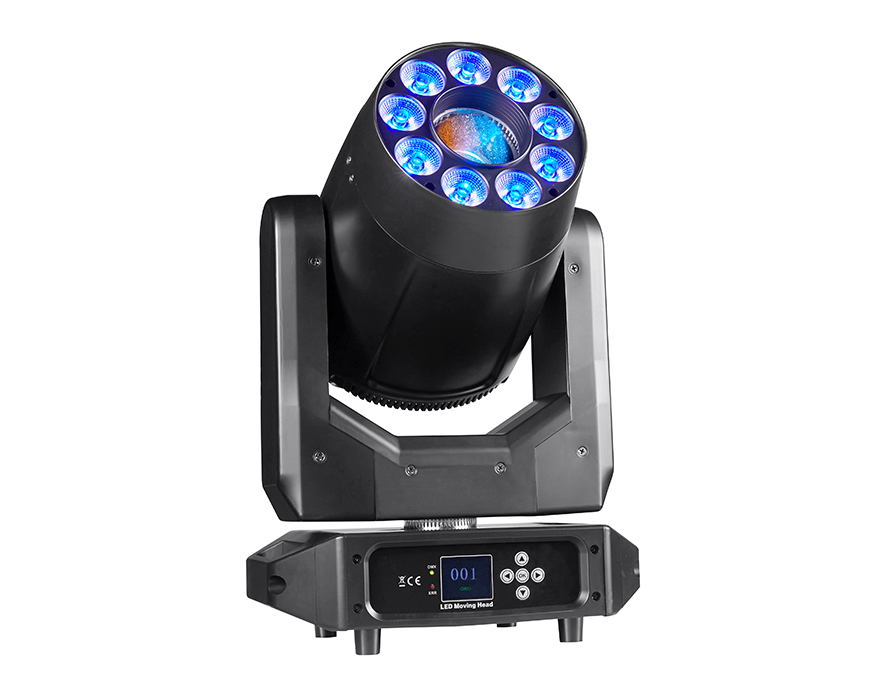

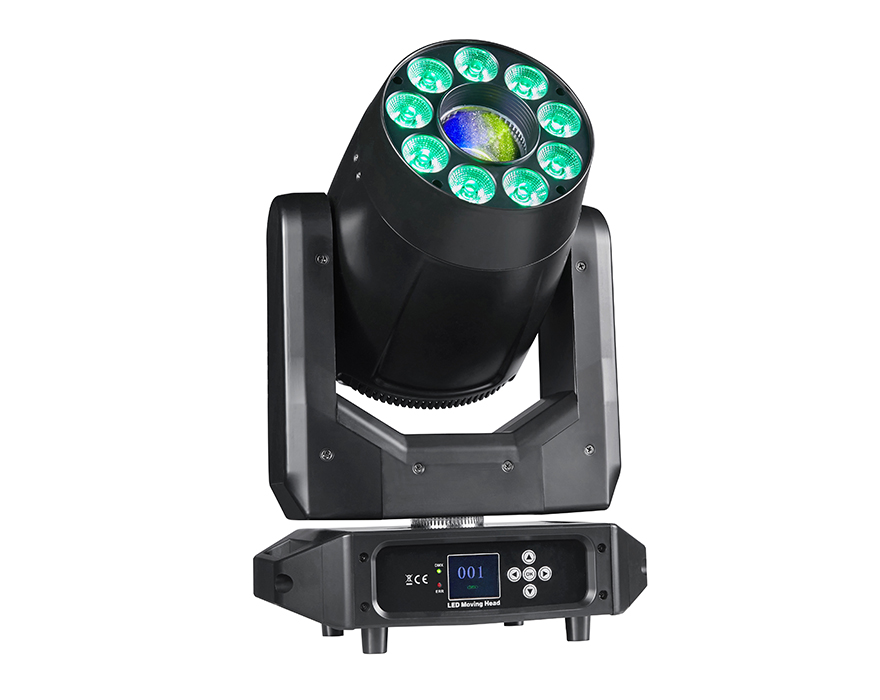

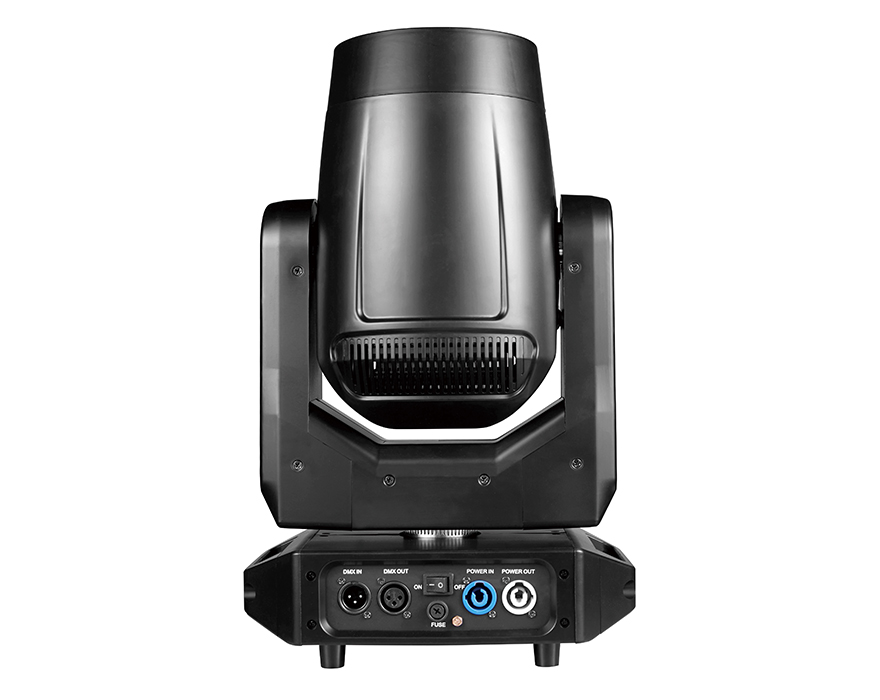

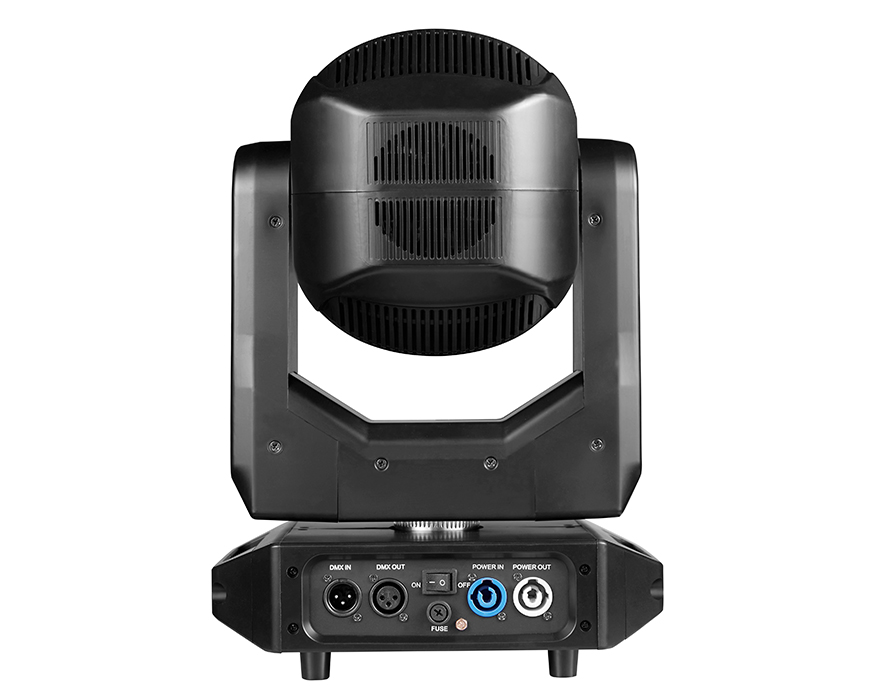

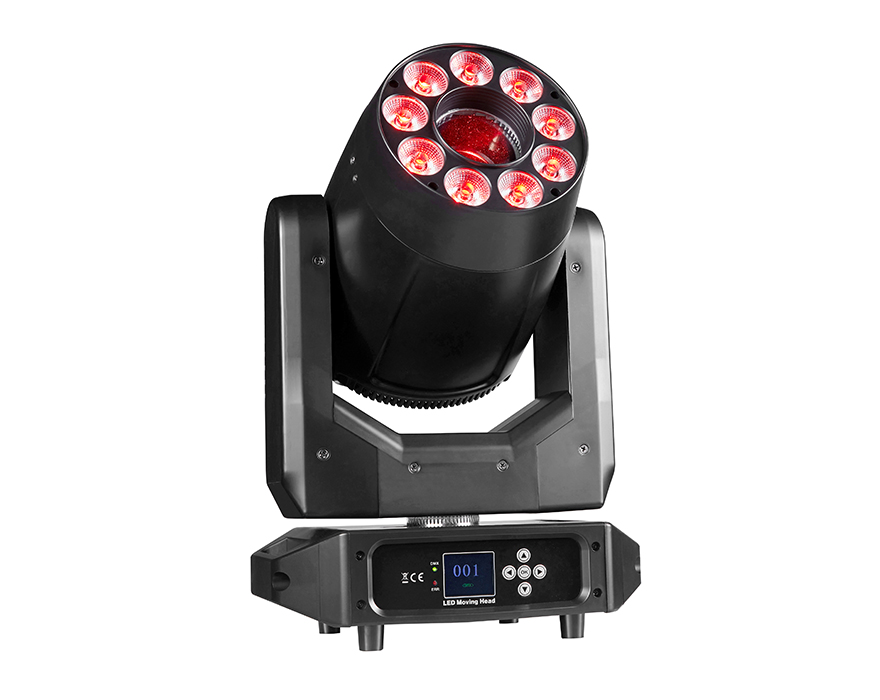

WHALE600BW

WHALE600BW is a high-power LED light that is an essential product for stage lighting. It is equipped with a rotating wine glass wheel and a color wheel. It has multiple functions of SPOT and WASH, and can produce various lighting effects such as Gobo shaking, rainbow, prism, dyeing effects, etc. It has built-in programs and automatic mode, making it easy to install and transport. It is energy-saving and suitable for professional stage performances.

Products Detail

Electrical Parameters
* 100V-240V AC,50Hz/60Hz
* 200w high power LED
* 9pcs x 12w RGBWA+UV 6in1 LED
* Wide beam angle：40000Lux@1M@25°
* Narrow beam angle：140000Lux@1M@13°
* Beam angle:spot13°~25° ,wash38°

Color Pattern
* Rotated gobo wheel with7 rotated interchangeable gobos plus open.
* Static gobo wheel with 7 gobos plus open.gobo shaking
* Color wheel with 7 diachronic colors plus open,split colors,rainbow effect
* Rotated 3 facet prism with speed adjustable and variable direction

Function
* 27 DMX channel
* Frost effect
* 0~100% linear dimmer and 1~20 times/sec high speed electronic strobe
* DMX512, master-slave,Auto and sound activated controllable
* LCD digital display and 5 menu buttons
* Tilt fine:270° Exact positioning (16 bit resolution),Auto position correction (feedback)
* Pan fine:540° Exact positioning (16 bit resolution),Auto position correction (feedback)

Size/Weight
* Dimensions: 288*203.8*389.5mm
* N.W.:8.40kg G.W.:10.50kg
